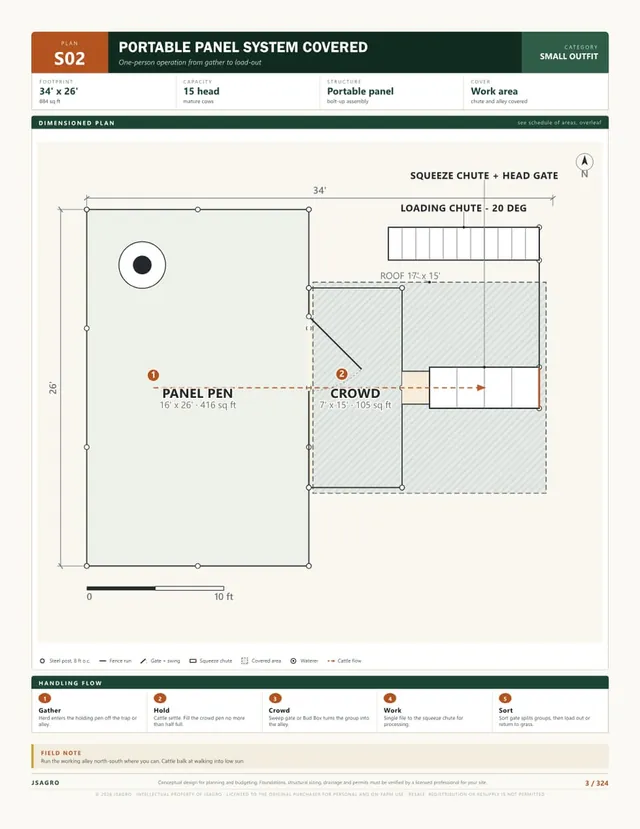

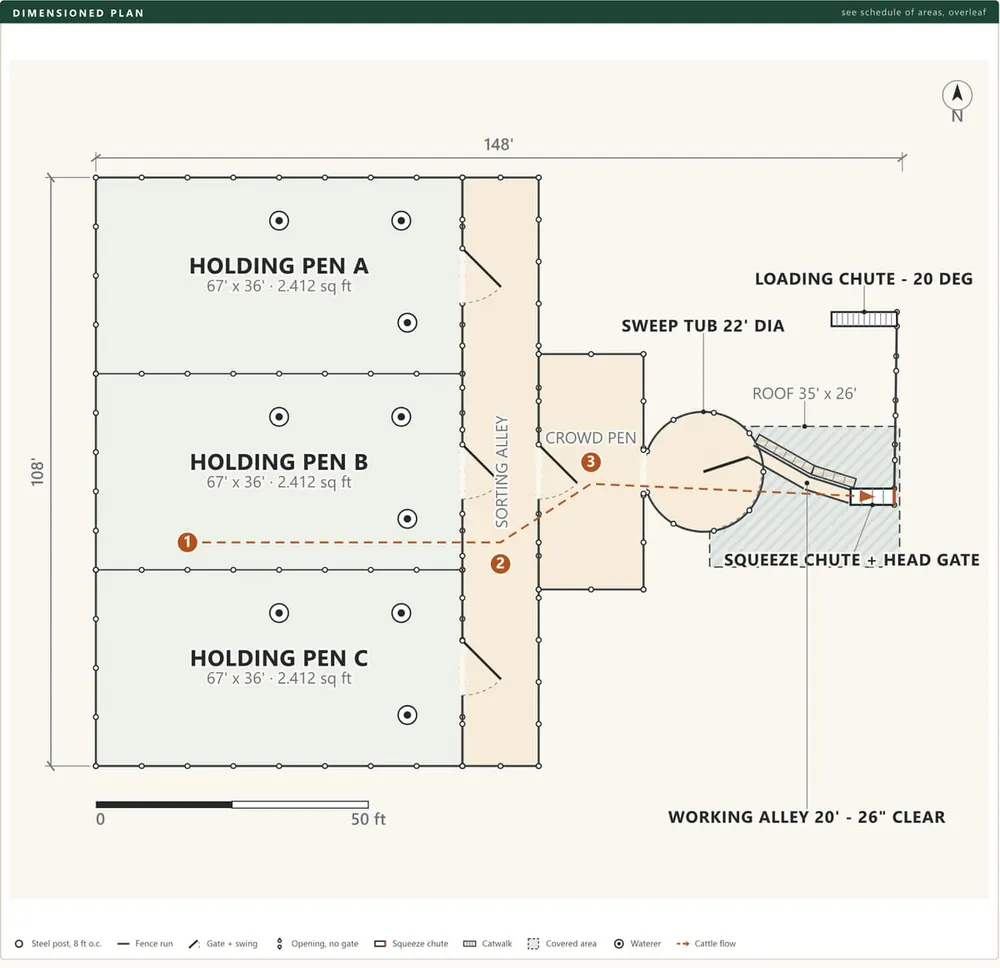

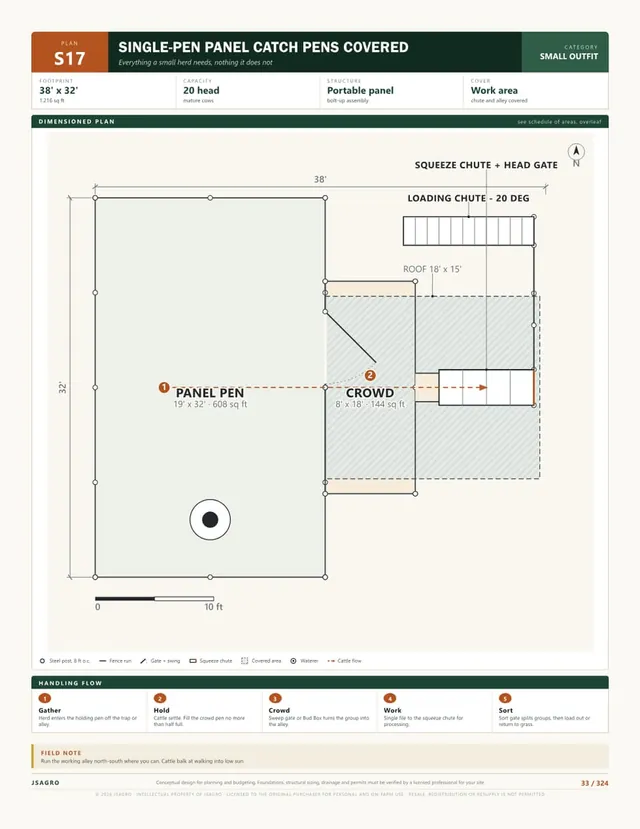

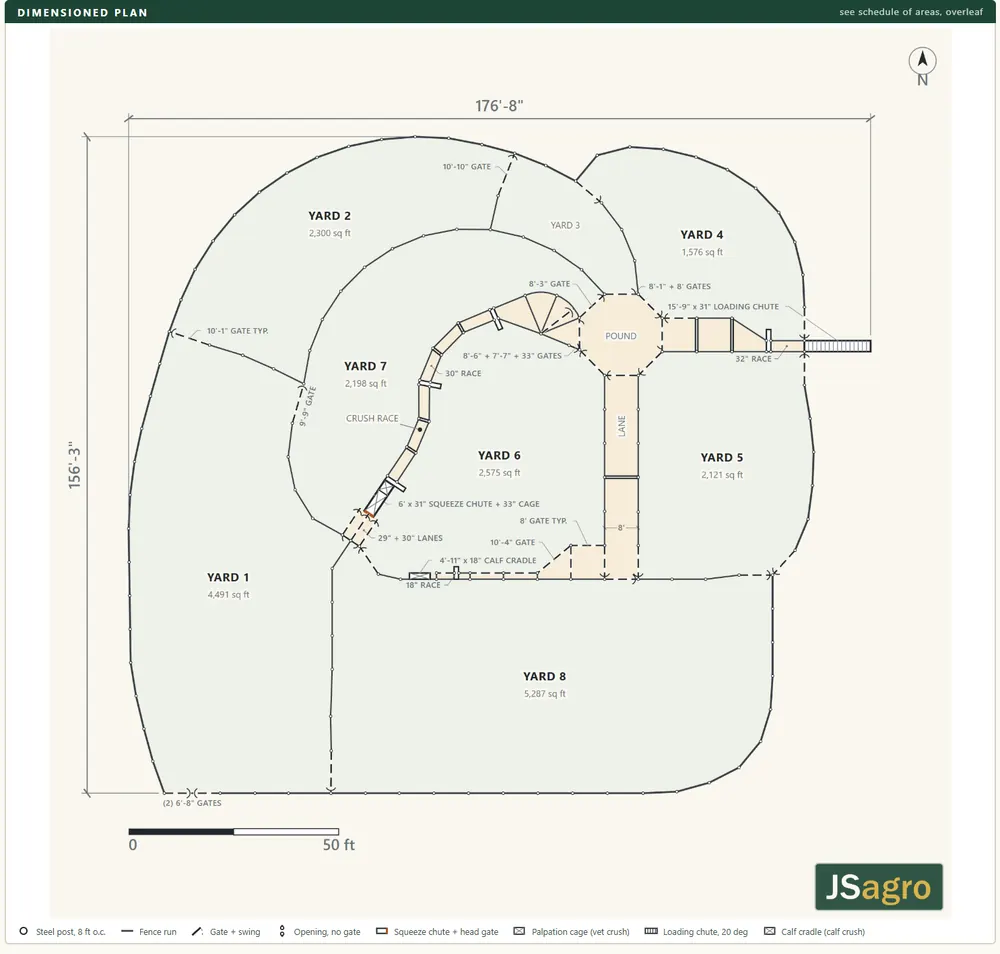

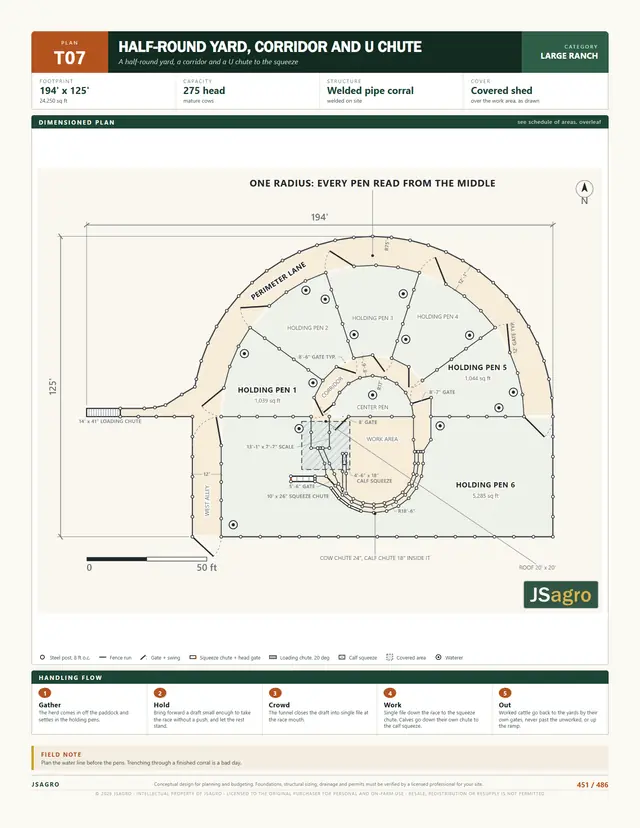

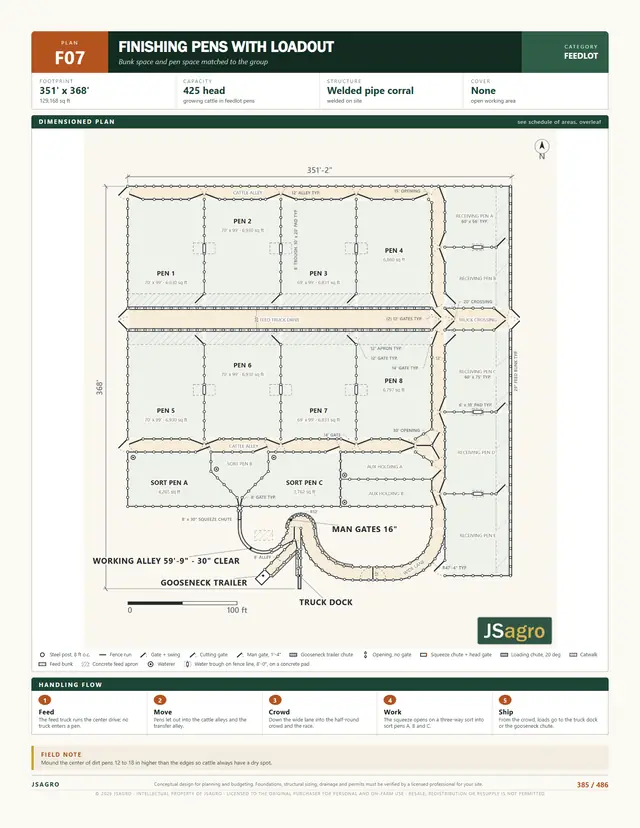

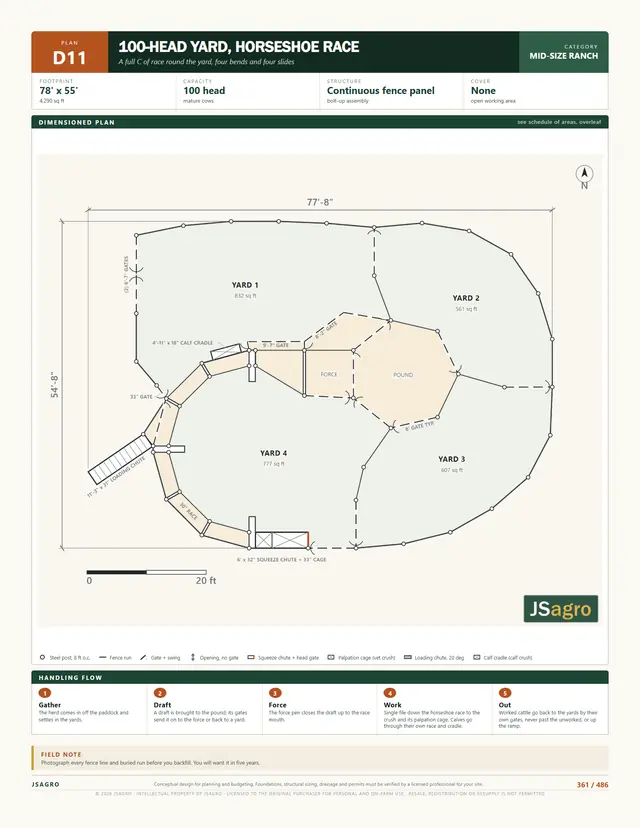

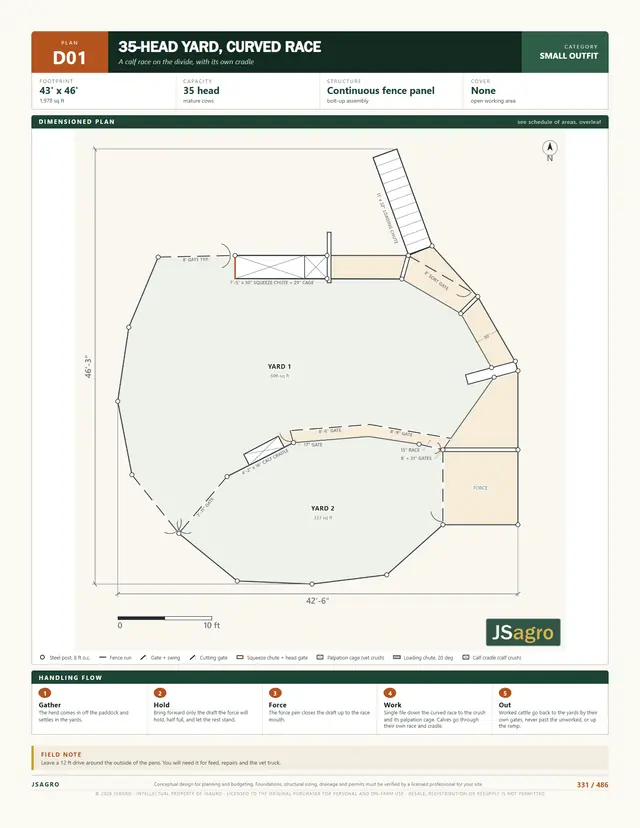

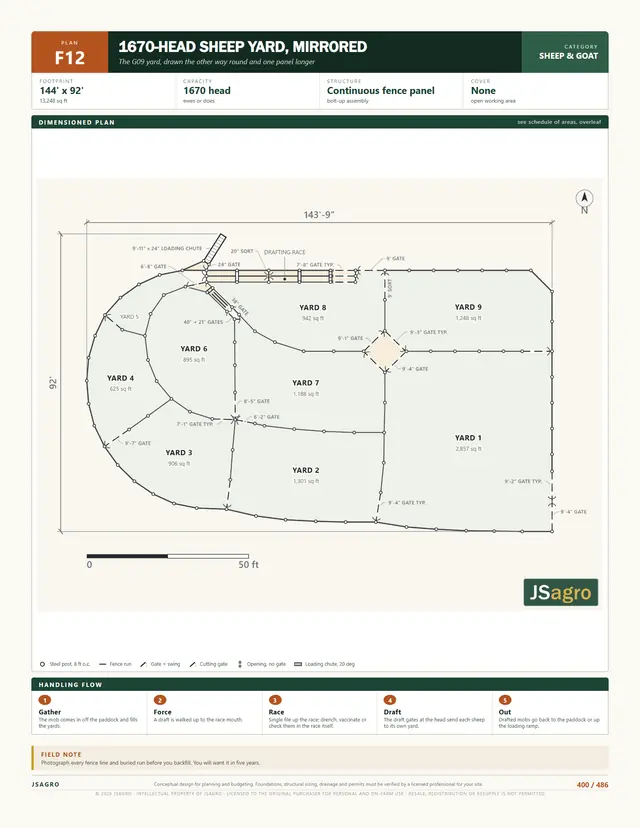

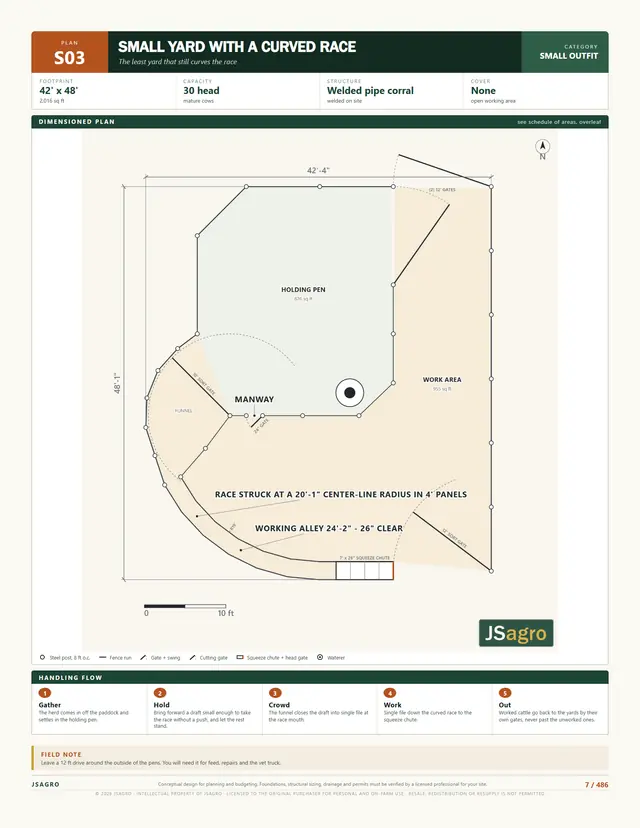

Dimensioned plan
Drawn to scale in feet and inches or in metres and millimetres, with the gates, races and chutes measured right on the drawing and the cattle flow marked step by step.
JSAgro
7-day guarantee
JSAgro
7-day guarantee
Find your herd size, print the sheet, and hand the material list to your supplier. Every plan drawn to scale and measured, imperial and metric.
All 162 plans for $29.90 · one-time payment
Find your outfit
Six families of plan, from 10 head to 1,670.
| Family | Plans | Capacity |
|---|---|---|
| Large ranch | 93 | 150 to 790 head |
| Mid-size ranch | 38 | 40 to 140 head |

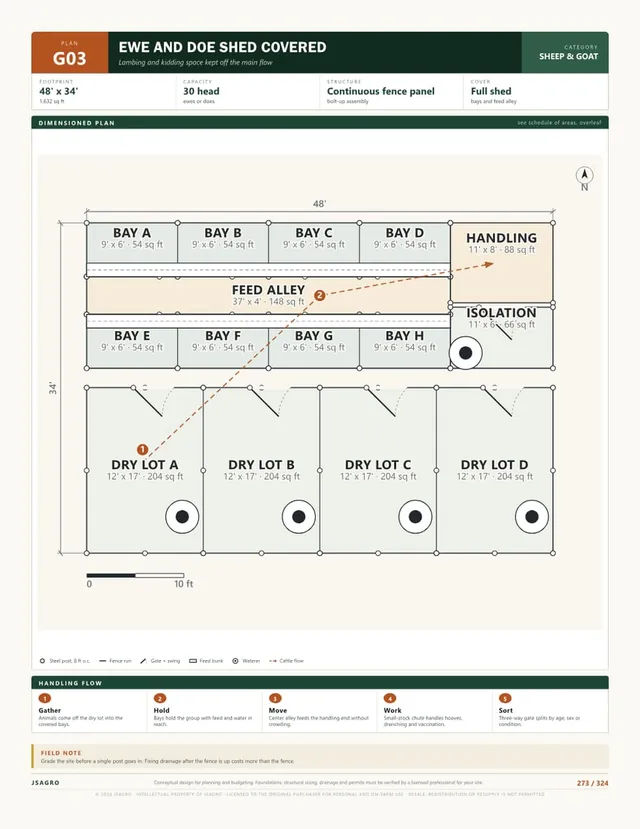

| Sheep & goat | 13 | 40 to 1,670 head |
| Small outfit | 11 | 10 to 35 head |
| Feedlot / drylot | 6 | 50 to 525 head |

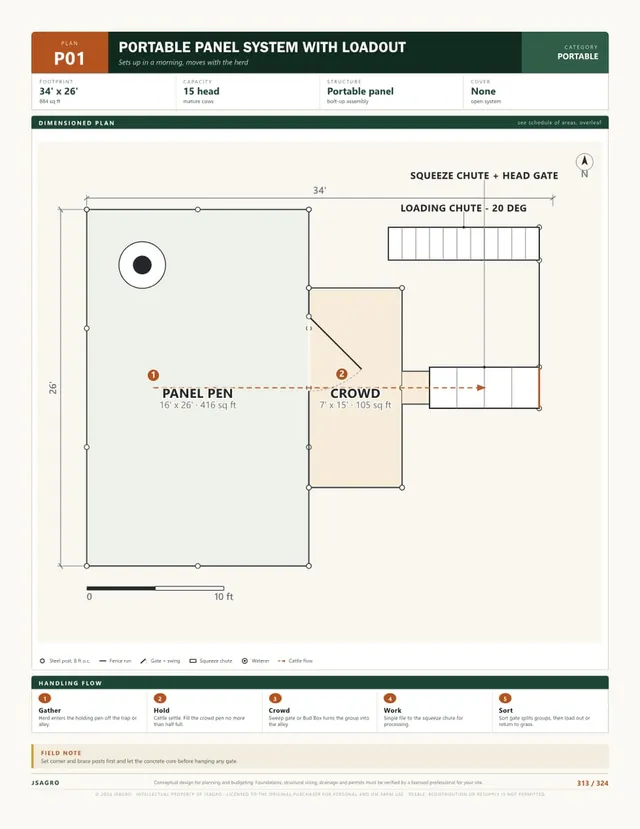

| Portable / seasonal | 1 | Sets up in a morning |
What's on the sheets

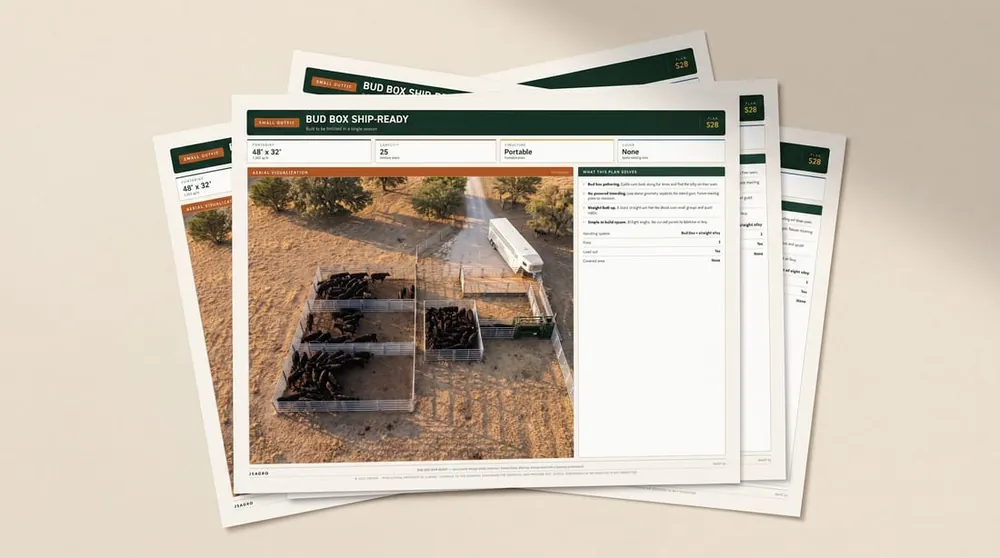

One to build from. One to price from. One with the details you build to.

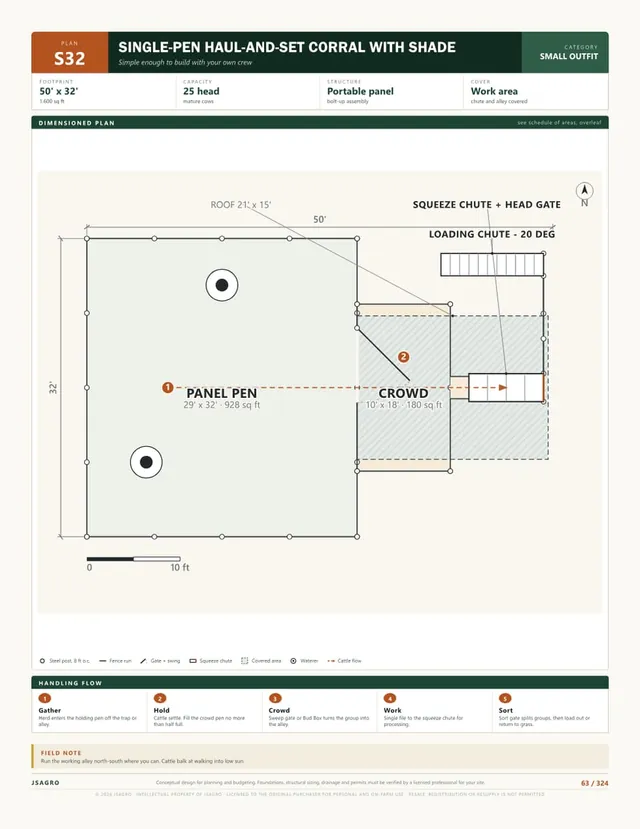

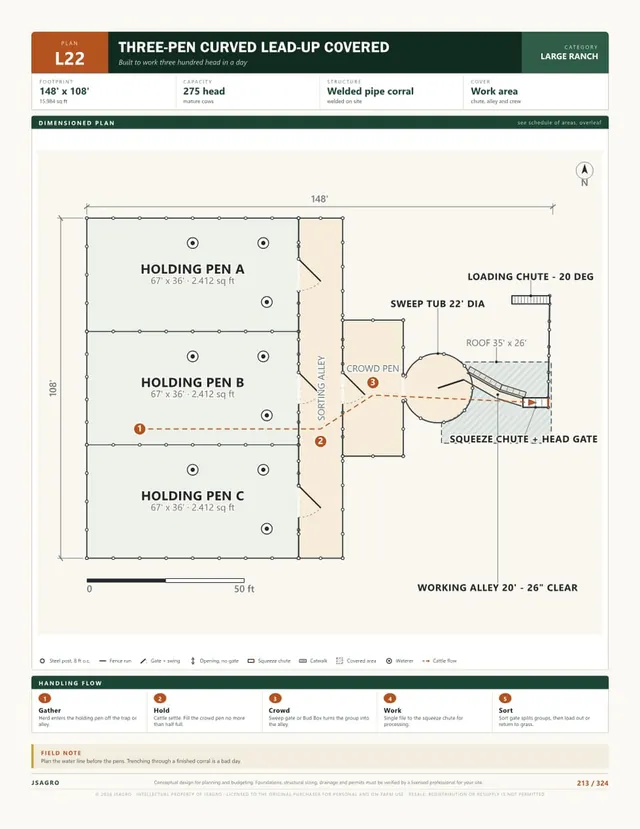

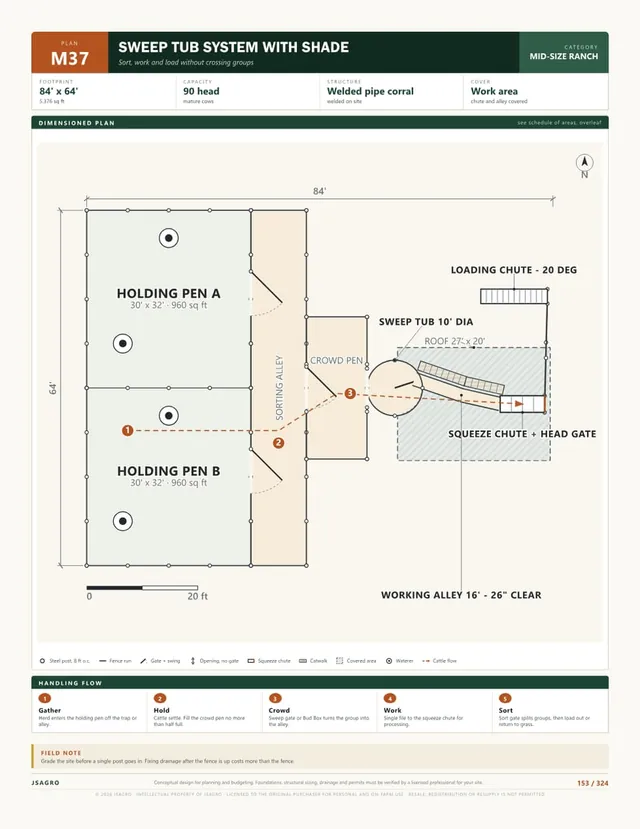

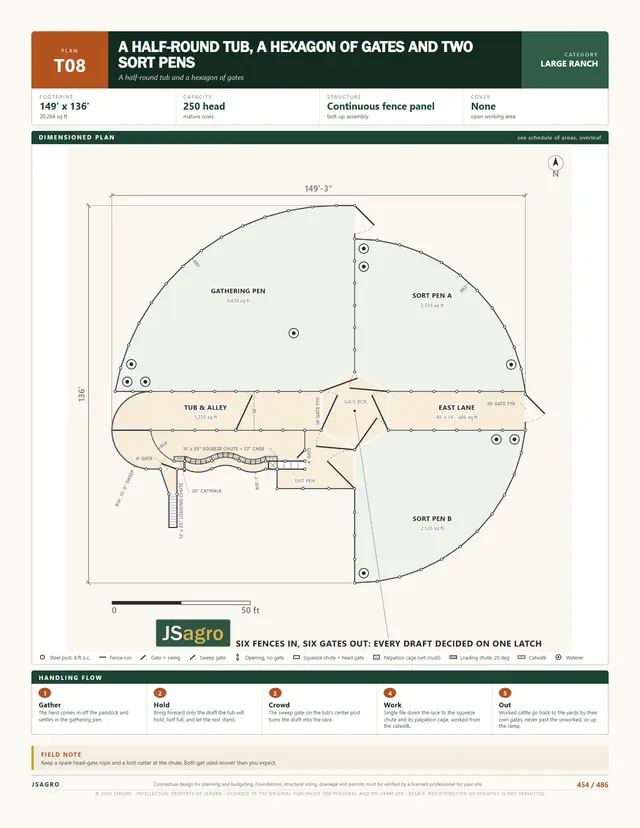

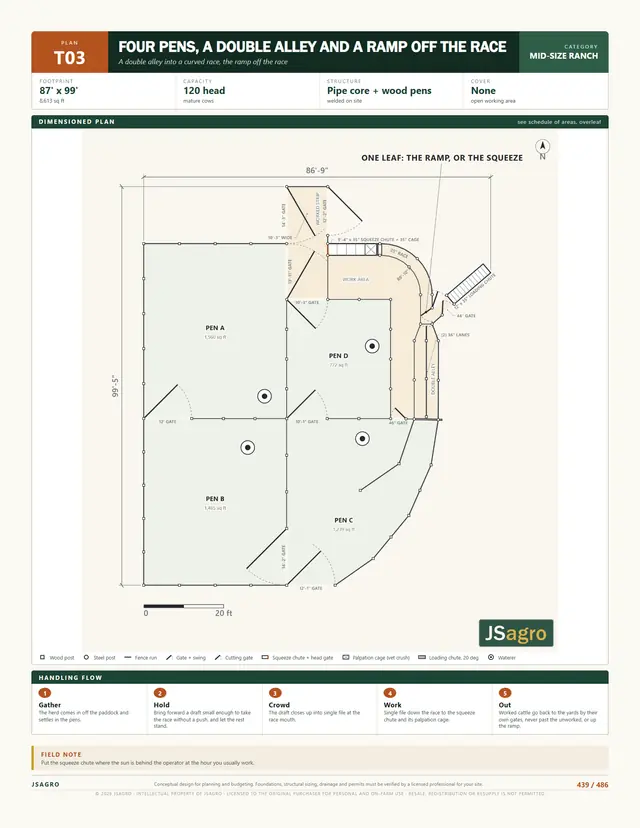

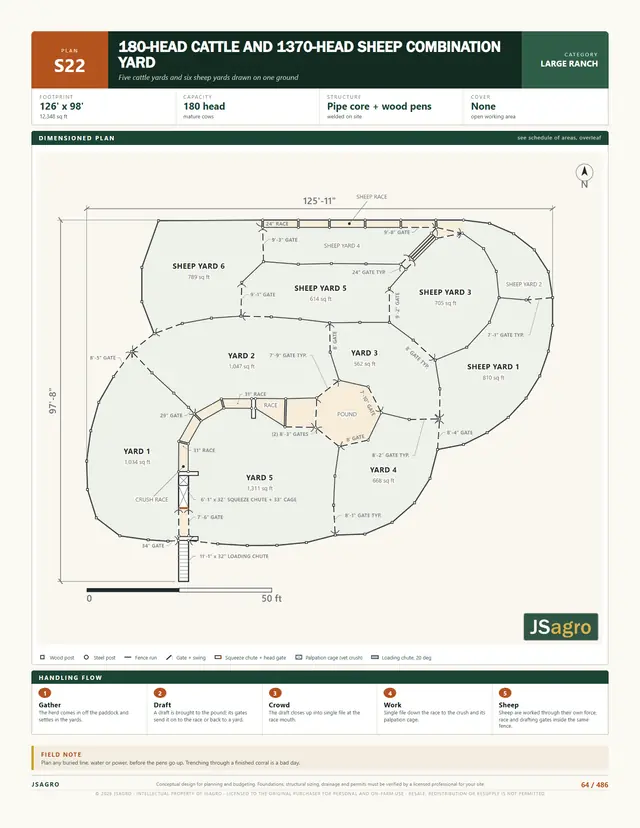

Drawn to scale in feet and inches or in metres and millimetres, with the gates, races and chutes measured right on the drawing and the cattle flow marked step by step.

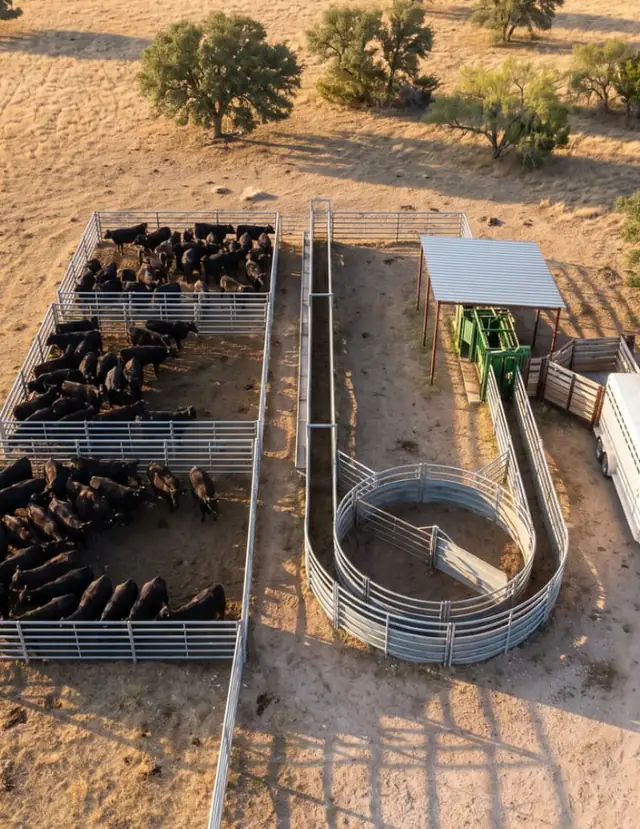

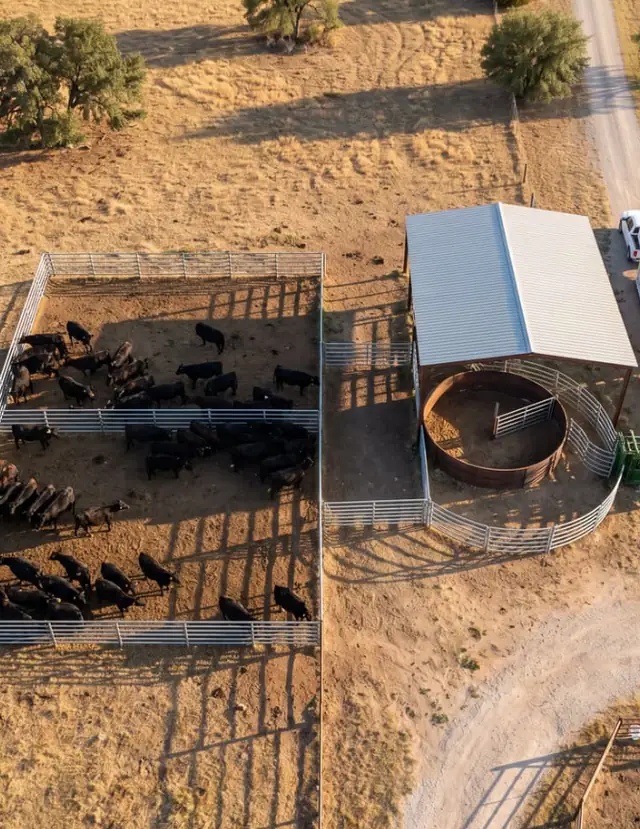

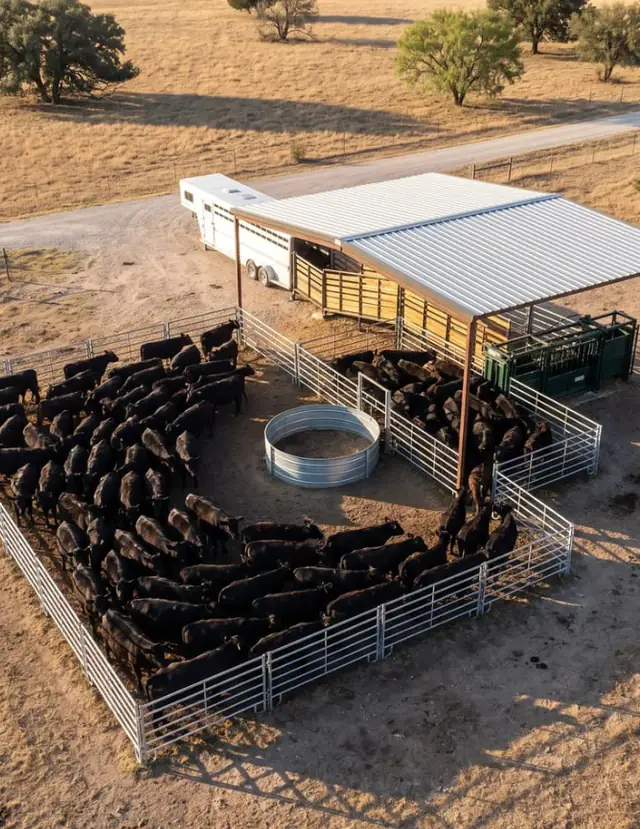

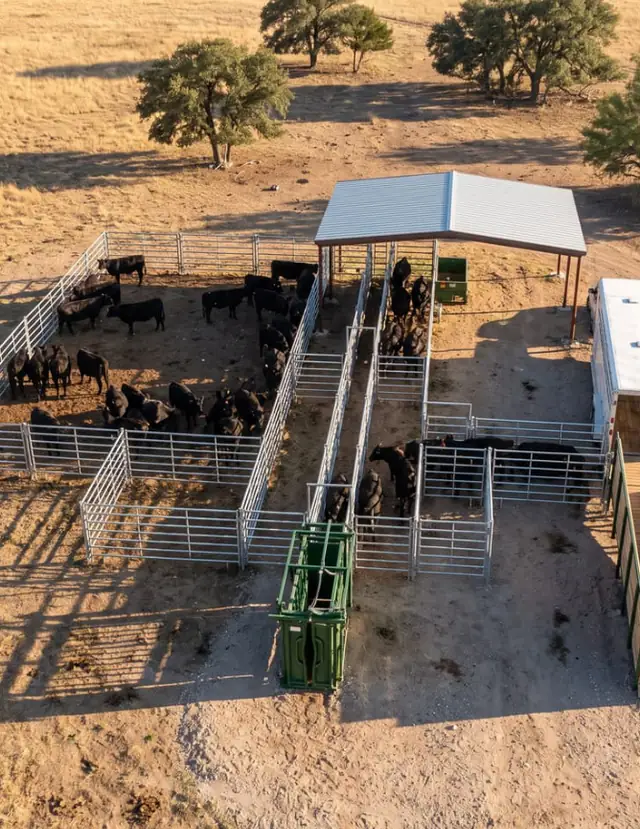

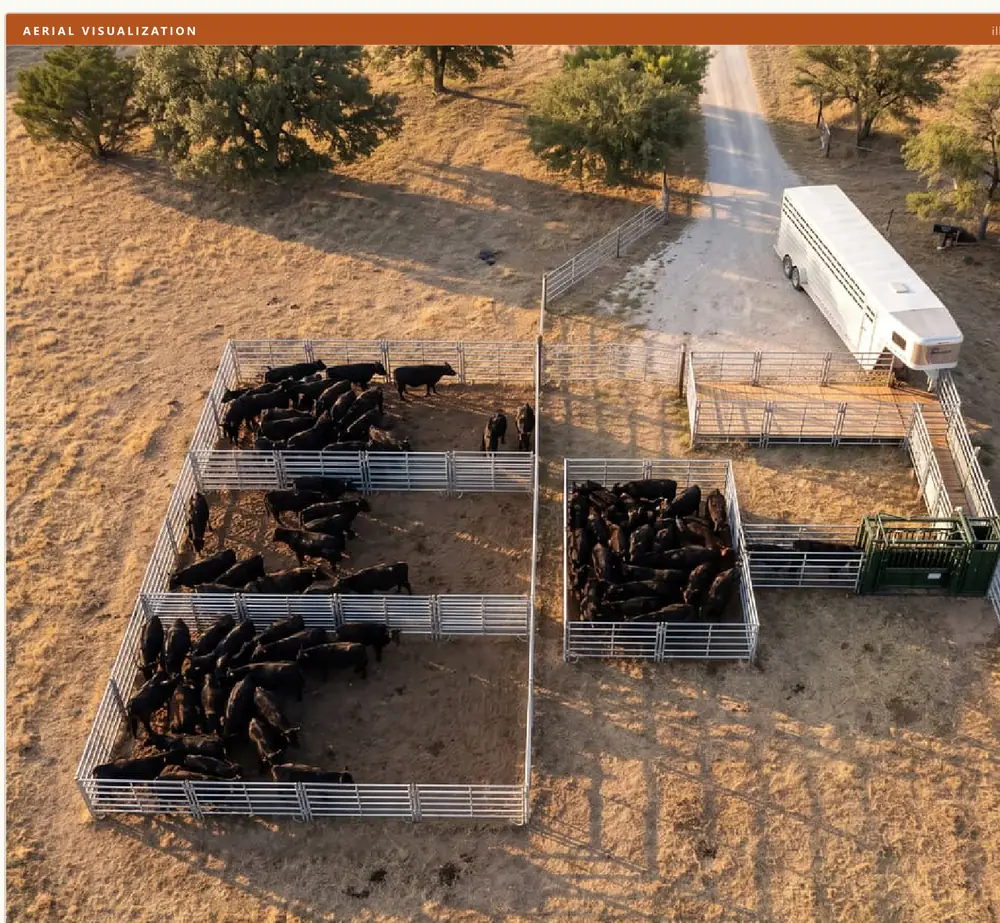

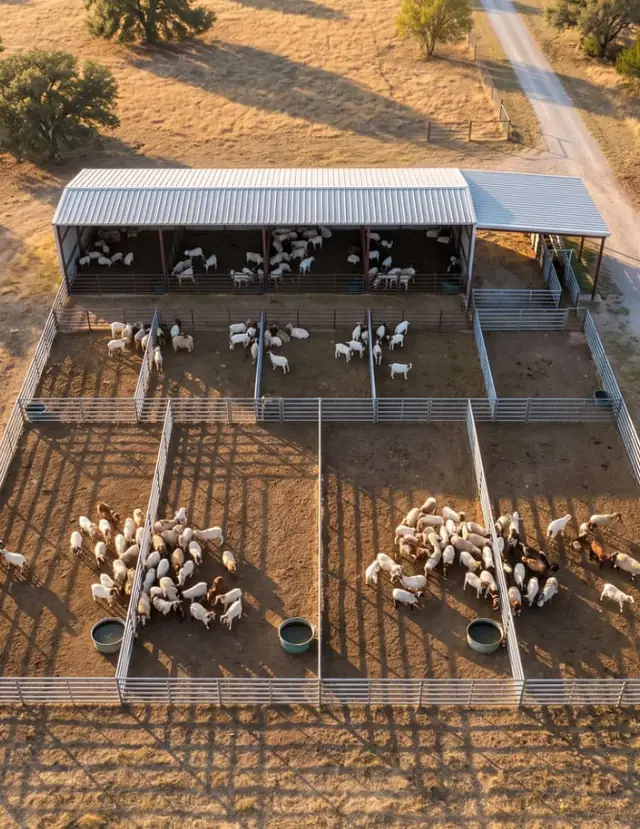

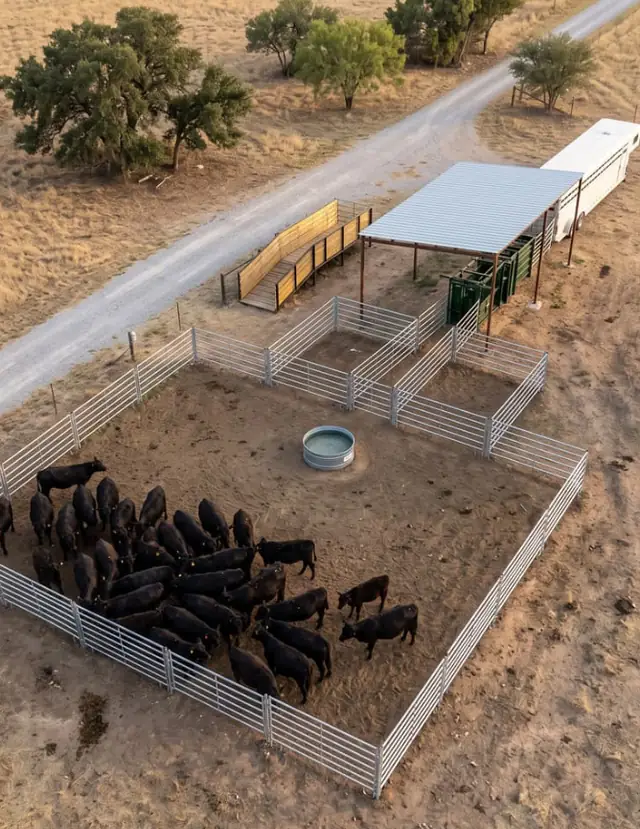

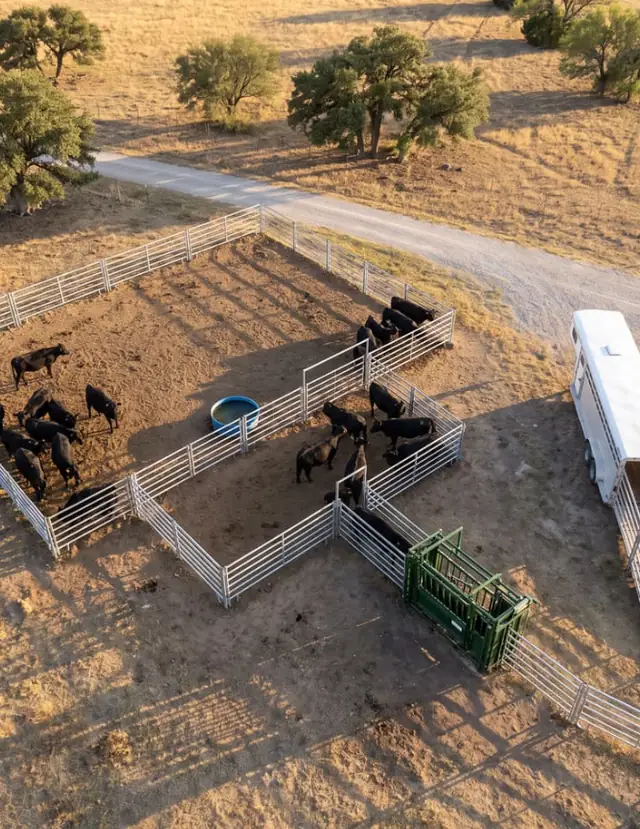

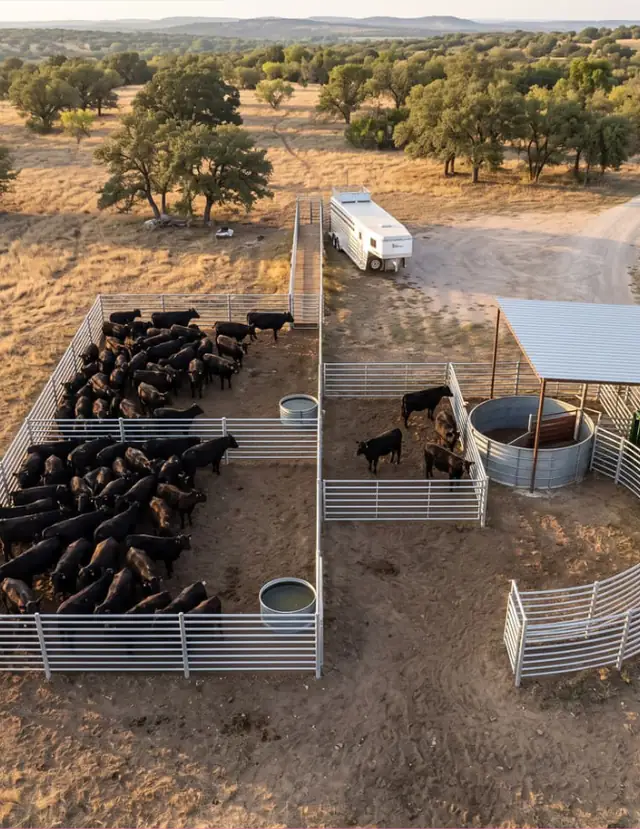

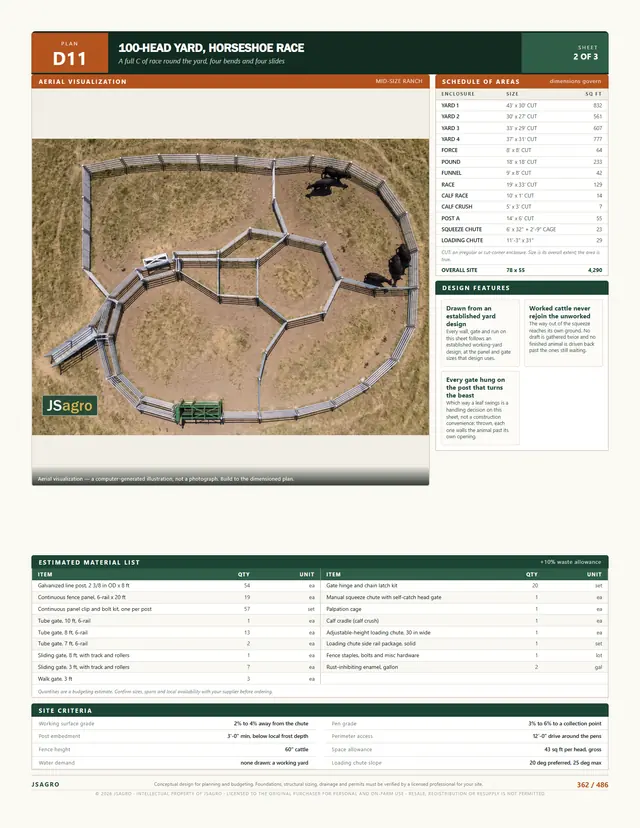

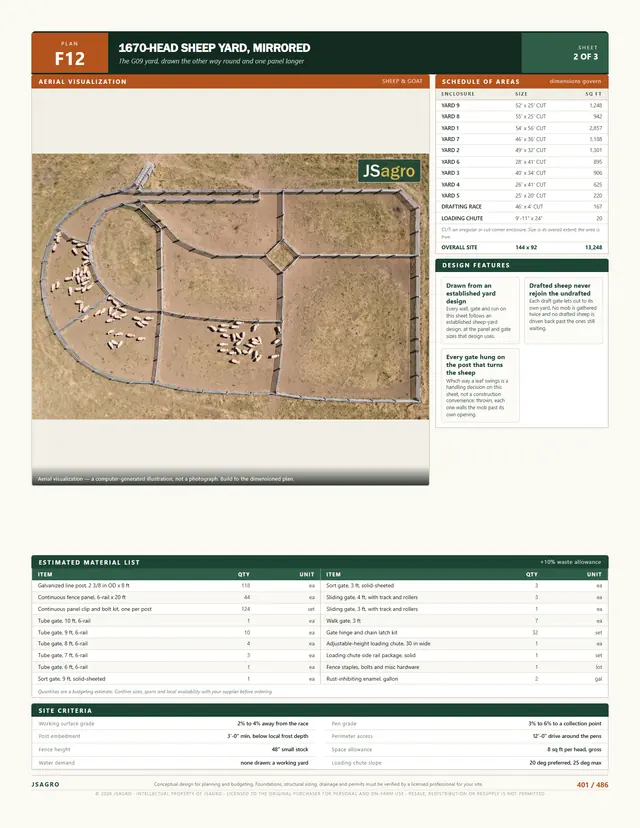

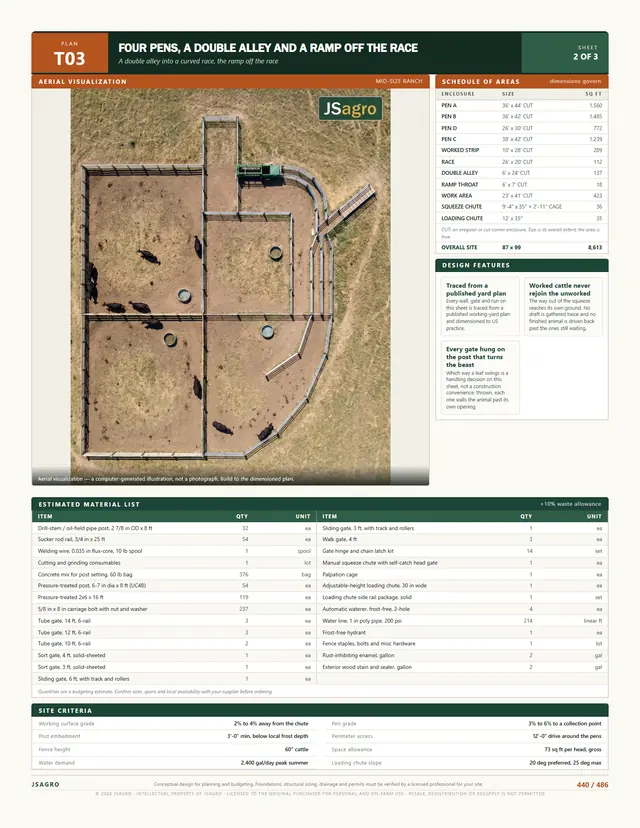

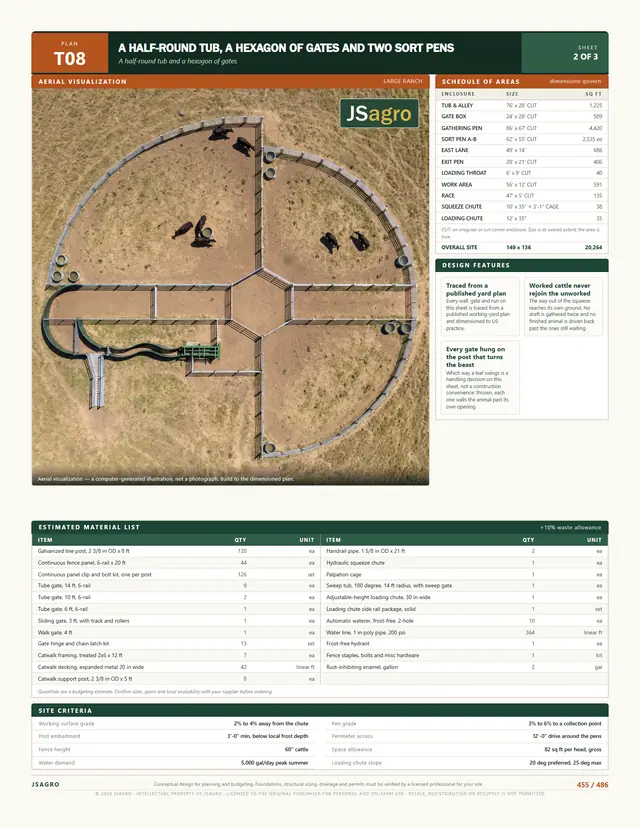

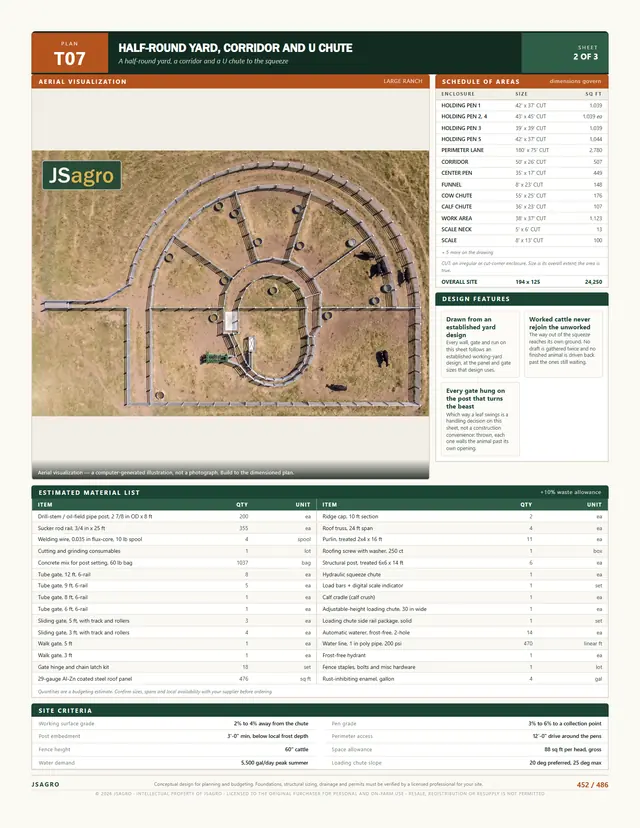

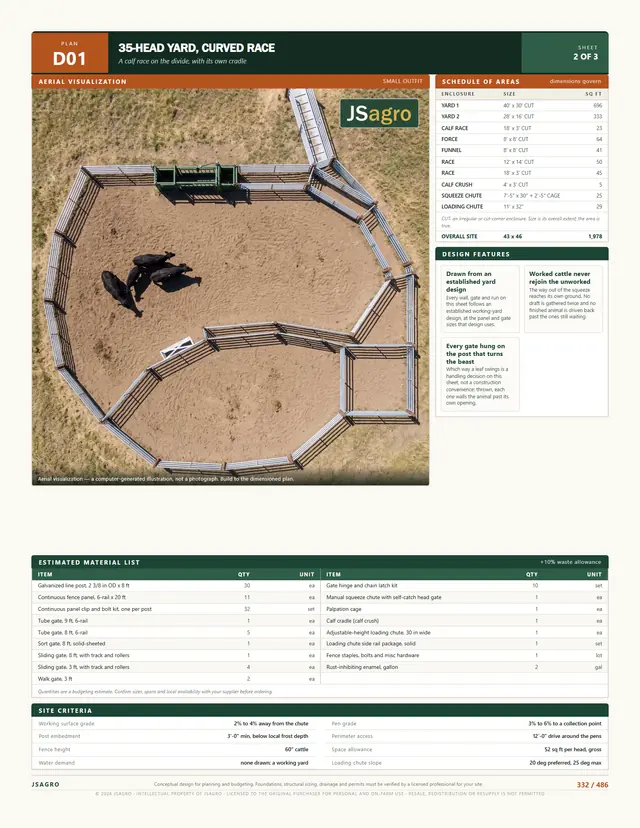

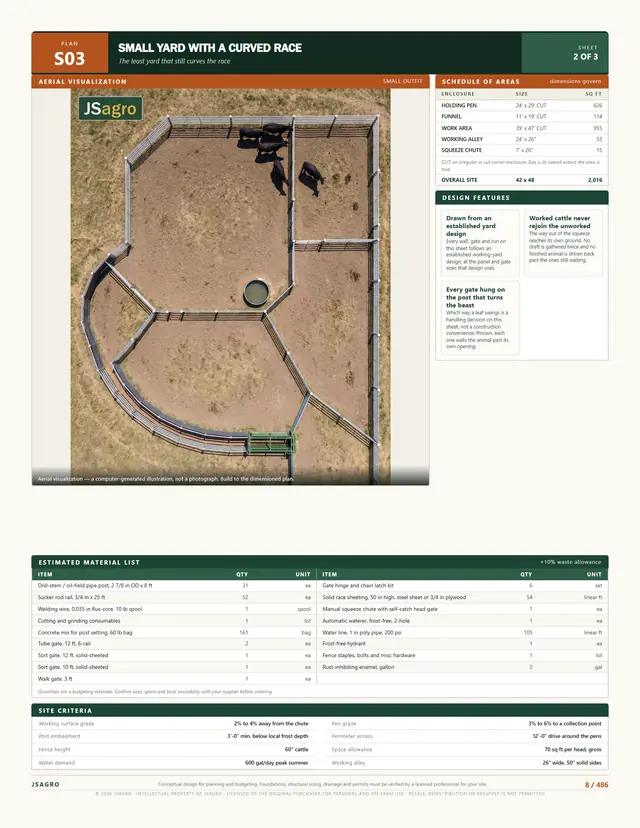

See the finished yard before the first post goes in the ground.

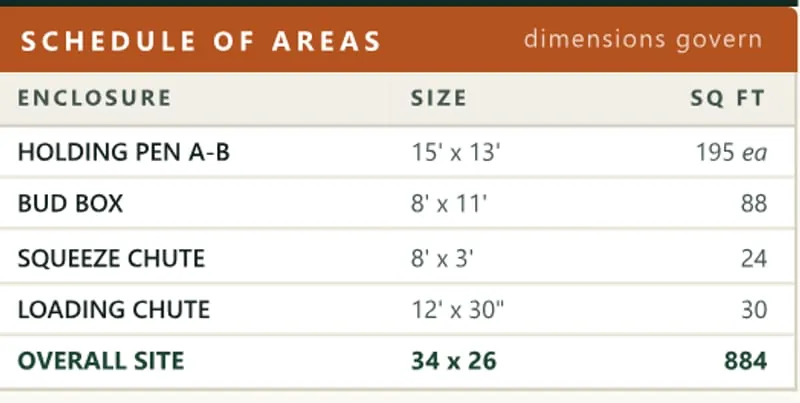

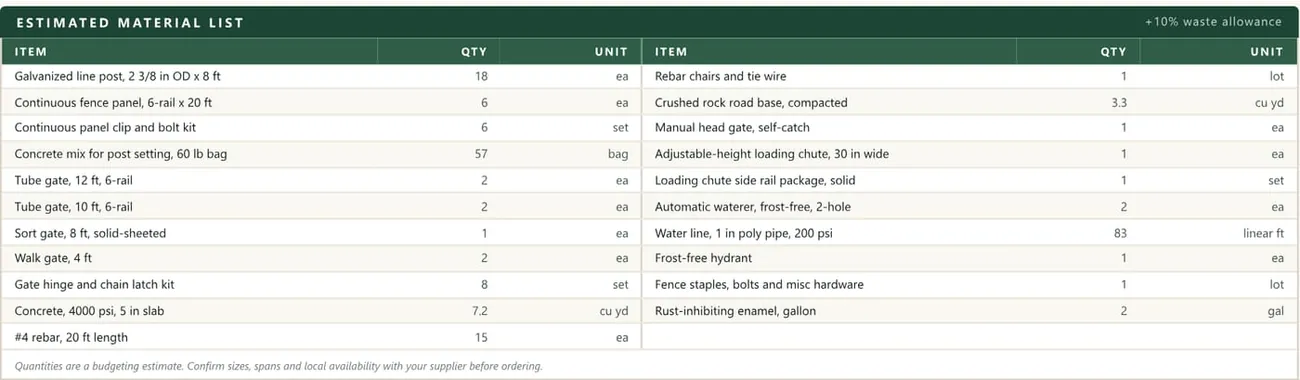

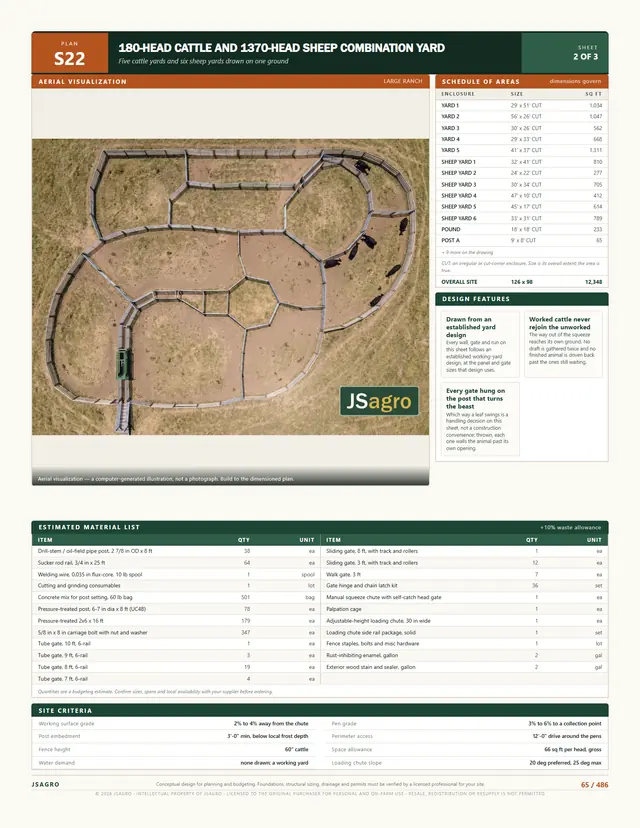

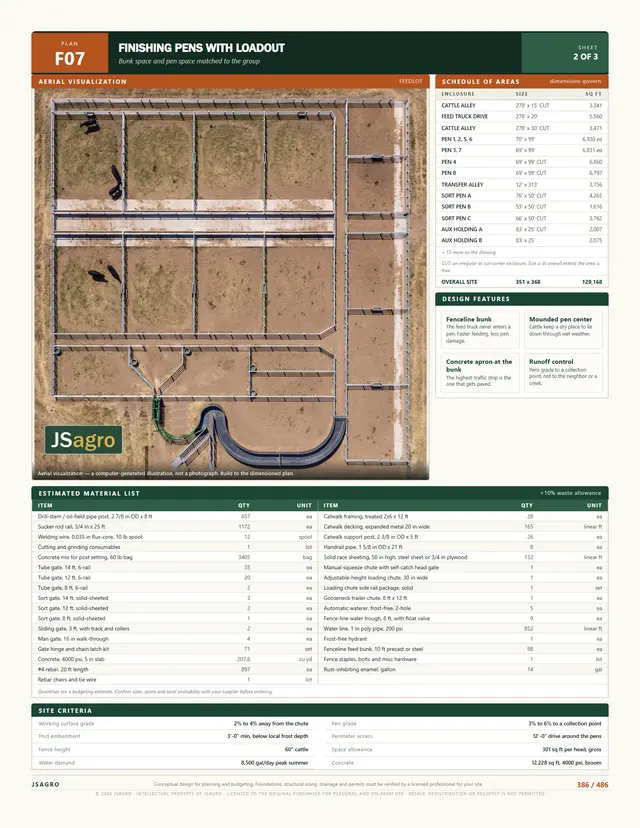

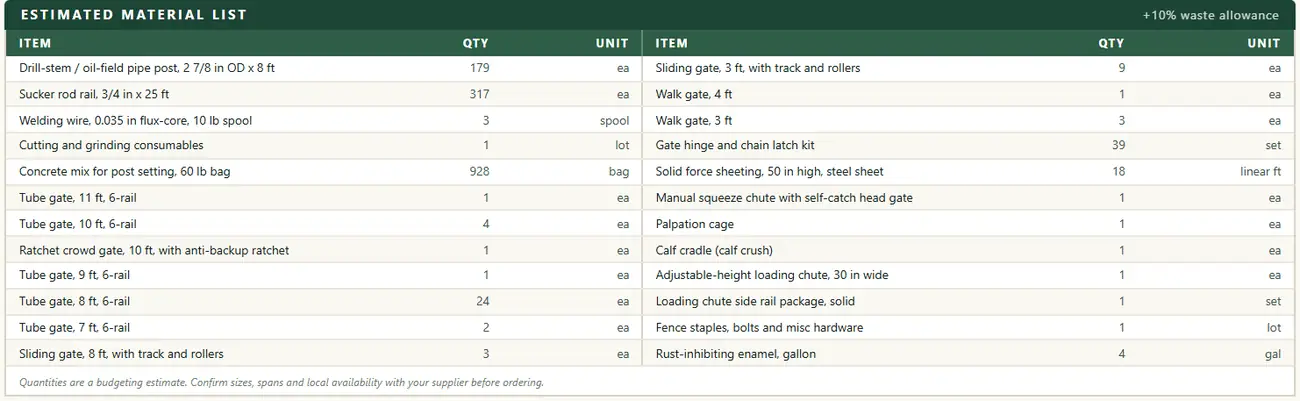

Estimated quantities in US trade units or metric sizes, beside a schedule of areas listing every pen. Walk it into the supply yard and get a price.

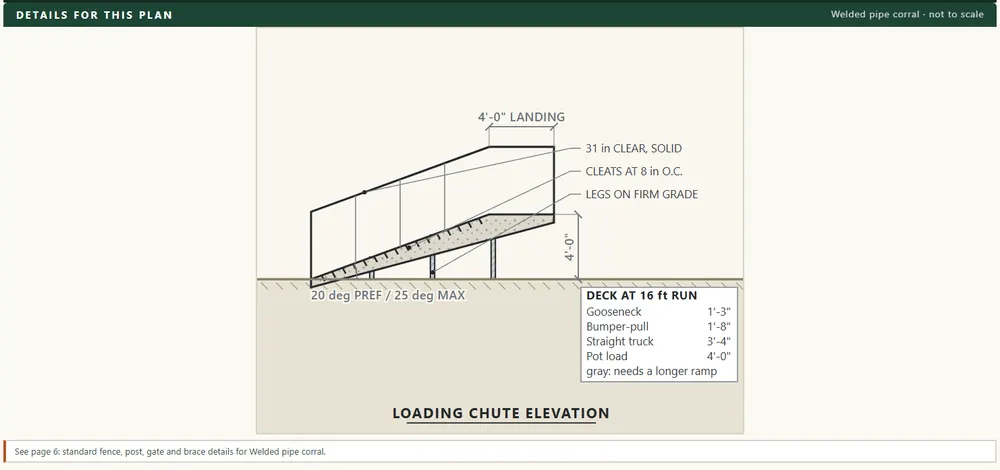

Chute elevation, alley section, gate and post schedules, and the notes your builder works to.
No learning curve
From the field

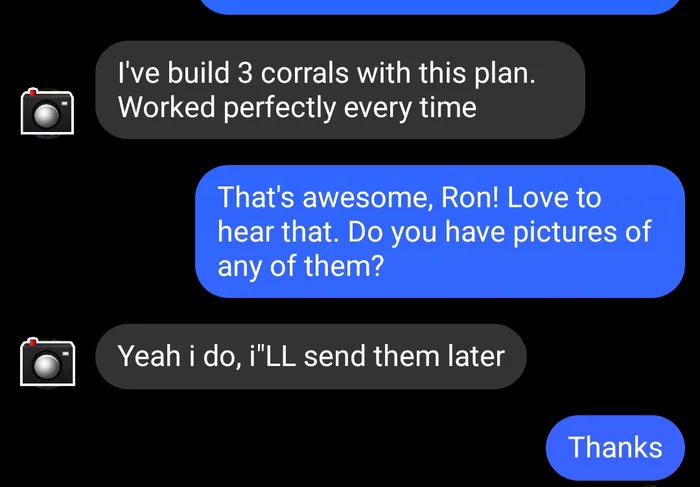

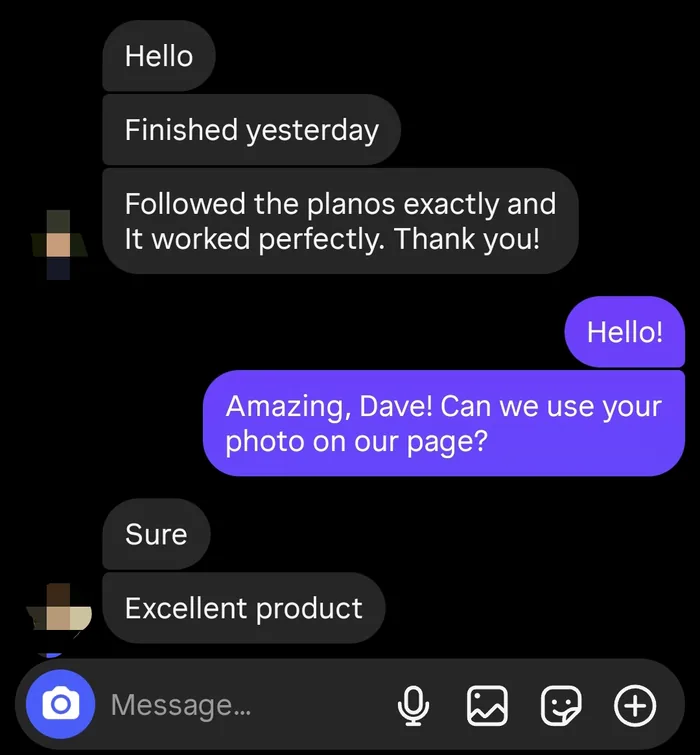

Messages from buyers, shared with their permission.
Included free
The plans say what to build. These say where, for how much, and who with.

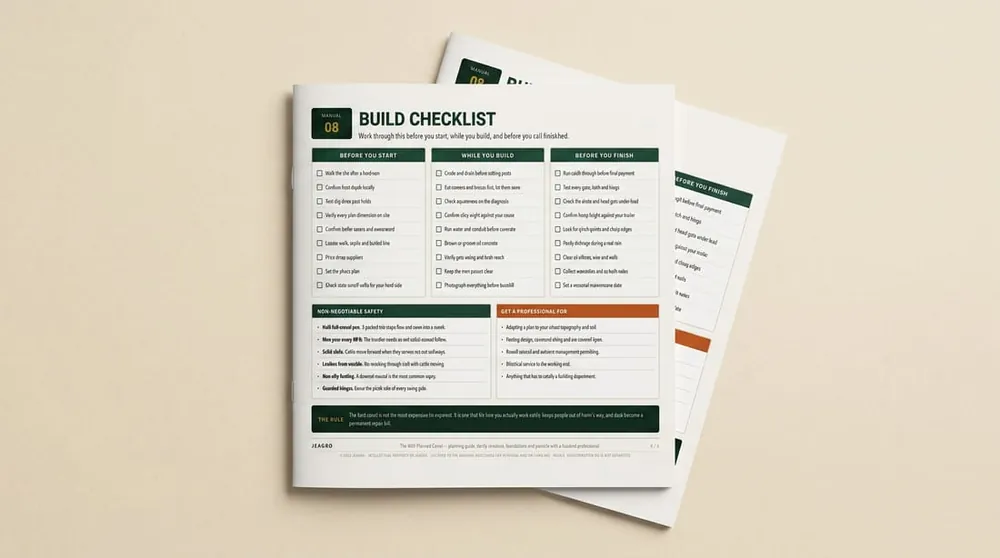

Where to put the yard, and the four mistakes that cost the most.

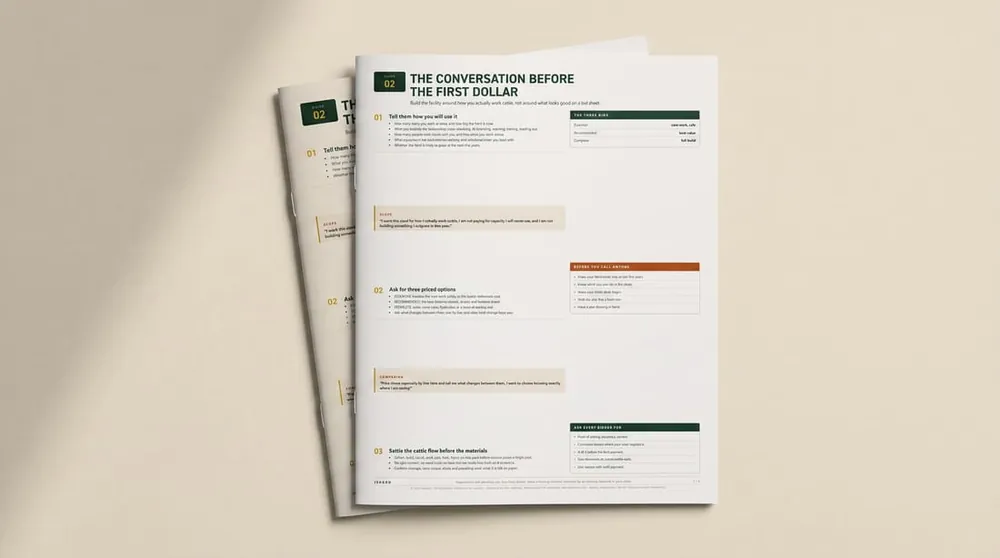

Write a scope, compare three bids, pay by stage instead of up front.

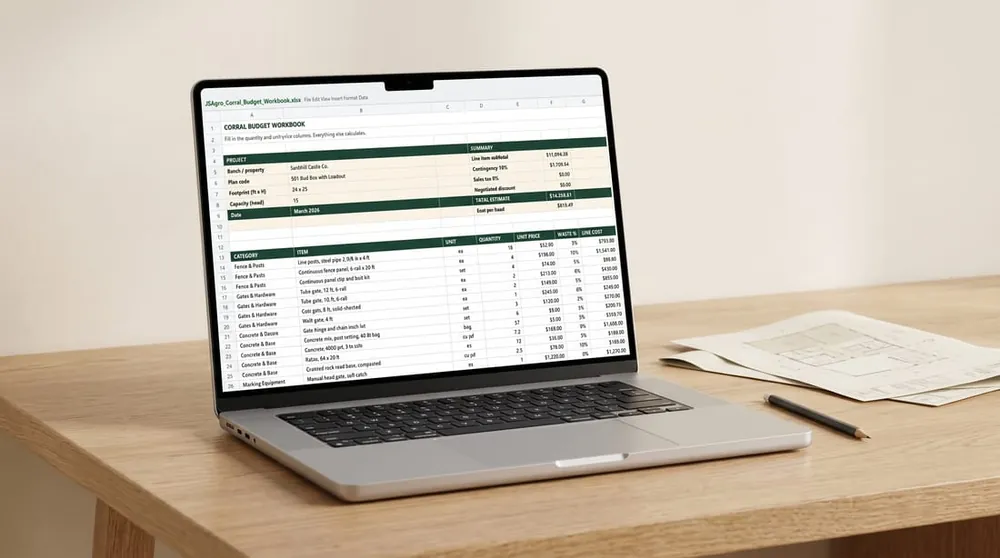

Enter your local prices and get your cost per head. Excel, Sheets or LibreOffice.
The whole set
Today only
Today only
$2990
One payment. No subscription.
One-time payment · No subscription · PDF, no CAD needed · Feet & inches + metric · 7-day guarantee
Secure checkout by Hotmart · Card or PayPal
Download the whole set and take a sheet out to the ground you're thinking about. If it isn't what you needed, write us inside 7 days and you get every dollar back.
Questions
No. One payment, one download, files are yours. There is nothing to cancel.
No. Everything is PDF. The workbook opens in Excel, Google Sheets or LibreOffice.
Both. The download carries a full imperial edition and a full metric edition of all 162 plans, workbook included. Pick the one that matches your tape.

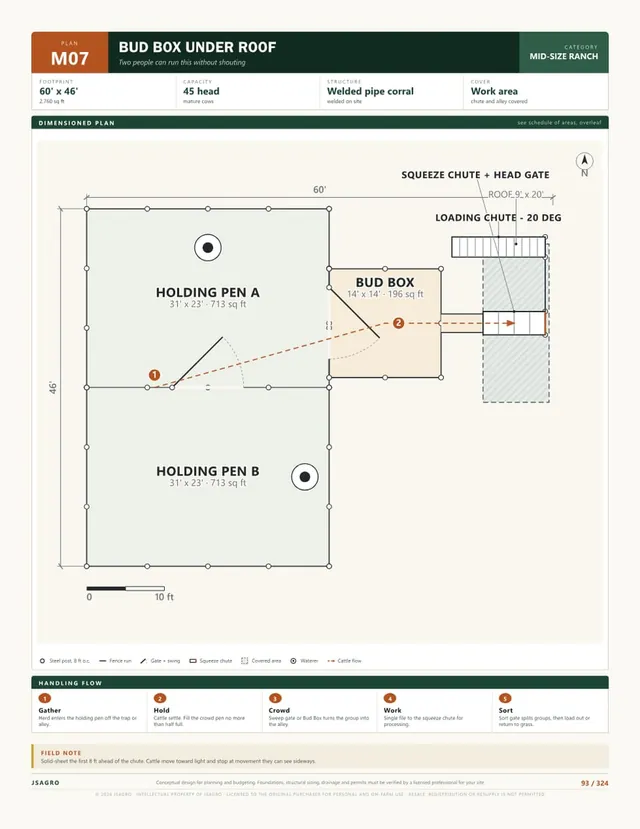

Yes. The mid-size ranch family alone has 38 plans, with yards sized for 40 to 140 head. Across all six families the yards run from 10 head to 790, and the sheep and goat yards go up to 1,670.
Yes, and most people do. Every dimension is called out on the sheet, so you can see what moves and what it affects.
Immediately. The link is on the confirmation page and in your email within a minute of paying.
You get the revision, at no extra cost, from the same download link. The set is on its 23rd edition and still being corrected against real yards; the edition line is printed on the cover of every book so you can tell which one you are holding.
After you order
Card or PayPal on a secure checkout. About a minute.
Link on the confirmation page and in your inbox.
Print your three sheets and take the material list to the supply yard.
162 plans and 3 bonuses, including a workbook that gives you a cost per head.
Get instant access $29.90 · 7-day guaranteeOne-time payment · No subscription · PDF, no CAD needed · Feet & inches + metric · 7-day guarantee
